MOT-PDM32

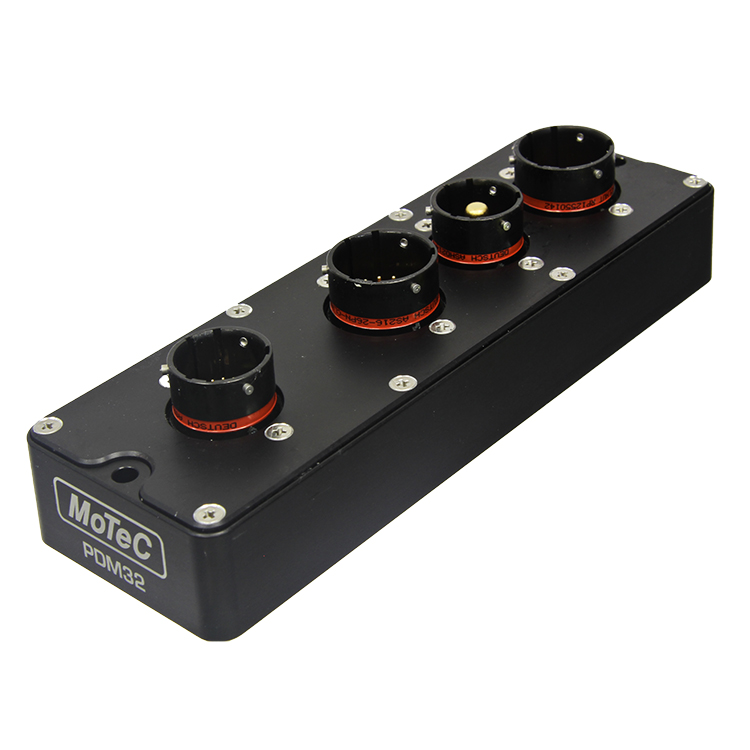

MoTeC PDM32
MoTeC's high-capacity 32-output Power Distribution Module features expanded I/O with Autosport connectors for enhanced durability and environmental sealing. Suitable for demanding motorsport and marine applications. All outputs are over-current, short circuit, and thermal overload protected. Outputs are programmable in 1A steps and controlled via switch inputs, CAN messages, and logic operations. IP66 rated (requires correct connector fitment).
Each item added separately to cart
Overview
MoTeC's high-capacity 32-output Power Distribution Module features expanded I/O with Autosport connectors for enhanced durability and environmental sealing. Suitable for demanding motorsport and marine applications. All outputs are over-current, short circuit, and thermal overload protected. Outputs are programmable in 1A steps and controlled via switch inputs, CAN messages, and logic operations. IP66 rated (requires correct connector fitment).
Inputs: 16 x switch inputs (0–15V, 0.1V resolution). Outputs: 28 x 8A outputs (8A continuous, 15A transient typical), 4 x 25A outputs (25A continuous, 40A transient typical). Communications: 2 x CAN. Case size: 200 x 150 x 40mm. Weight: 800g. Connectors: 4 x Autosport circular connectors (26-pin, 37-pin, 8-pin, 1-pin). Operating temperature: -40°C to 85°C. Operating voltage: 16V max.
Compatible with M Series ECUs (package dependent) and C125, C127, C1212, C185, C187, C1812, CDL3, L120, and L240 loggers. Requires MoTeC UTC for PC communication. Autosport connector kit sold separately.
