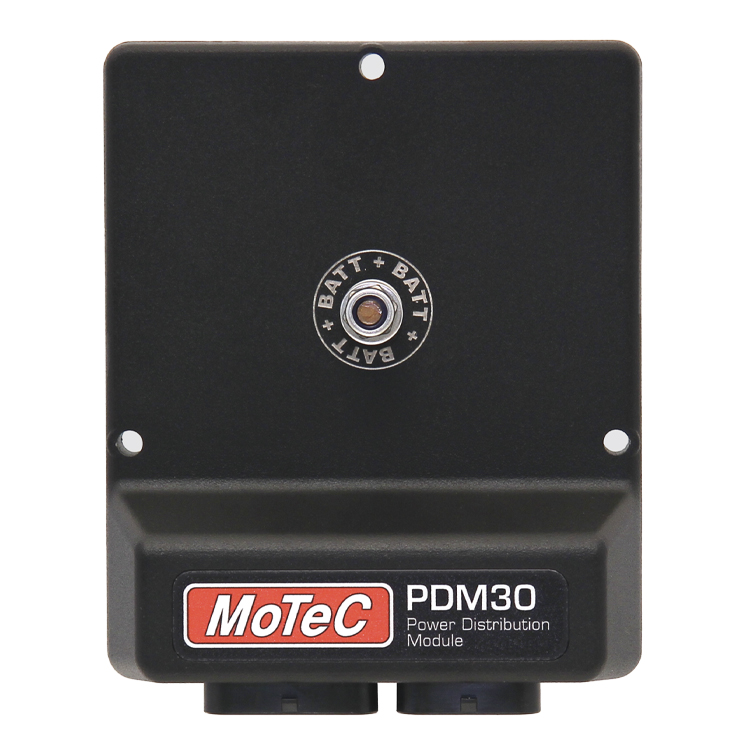

MoTeC PDM30
MoTeC's 30-output Power Distribution Module provides electronically switched power to vehicle electrical systems, replacing conventional relays, fuses, and circuit breakers. All outputs are over-current, short circuit, and thermal overload protected. Outputs are programmable in 1A steps and controlled via switch inputs, CAN messages, and up to 30 logic operations. Provides full diagnostic information via CAN.
Each item added separately to cart
Overview
MoTeC's 30-output Power Distribution Module provides electronically switched power to vehicle electrical systems, replacing conventional relays, fuses, and circuit breakers. All outputs are over-current, short circuit, and thermal overload protected. Outputs are programmable in 1A steps and controlled via switch inputs, CAN messages, and up to 30 logic operations. Provides full diagnostic information via CAN.
Inputs: 8 x switch inputs (0–15V, 0.1V resolution). Outputs: 27 x 8A outputs (8A continuous, 15A transient typical), 3 x 25A outputs (25A continuous, 40A transient typical). Communications: 2 x CAN. Case size: 144.5 x 107.4 x 44.2mm. Weight: 500g. Connectors: 1 x 26-pin waterproof, 1 x 37-pin waterproof, 1 x M8 stud. Operating temperature: -40°C to 85°C. Operating voltage: 16V max.
Compatible with M Series ECUs (package dependent) and C125, C127, C1212, C185, C187, C1812, CDL3, L120, and L240 loggers. Requires MoTeC UTC for PC communication. Mating connectors sold separately.
