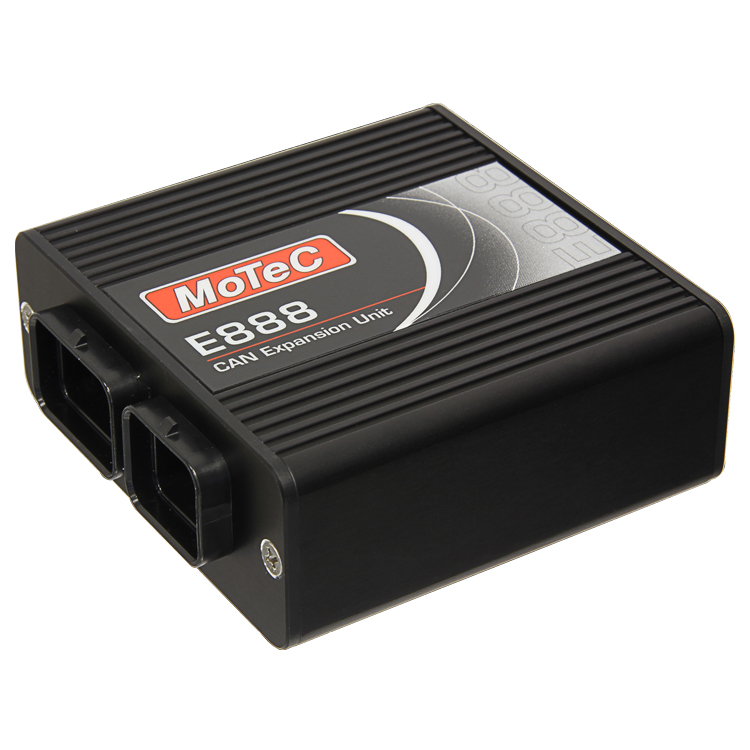

MoTeC E888 Expander

The MoTeC E888 Expander increases the I/O capacity of MoTeC ECUs and data loggers via CAN. Provides flexible expansion for additional sensors and auxiliary control functions.

Inputs: 8 x analogue voltage inputs (12-bit / 3.9mV resolution, 0–5V range); 8 x thermocouple inputs (1°C resolution, K-type, -200 to 1200°C); 8 x cold junction compensation thermistor inputs; 4 x digital inputs (frequency measurement and switched); 8 x switch inputs. Update rate: 100Hz (drops to 50Hz with a second expander on the same bus). Outputs: 8 x PWM outputs individually controllable for frequency and duty cycle (4 outputs: 0–100% duty, 1Hz–10kHz; 4 outputs: 0–100% duty, 1Hz–100Hz). Communications: CAN. Case size: 98 x 73 x 28mm. Weight: 200g. Connectors: Two-part 26-pin waterproof connector with gold-plated contacts.

Compatible with SDL, ADL, EDL, ACL loggers and M4, M48, M400, M600 ECUs. Mating connectors (26-pin and 16-pin Superseal kits) sold separately.
