MOT-C185

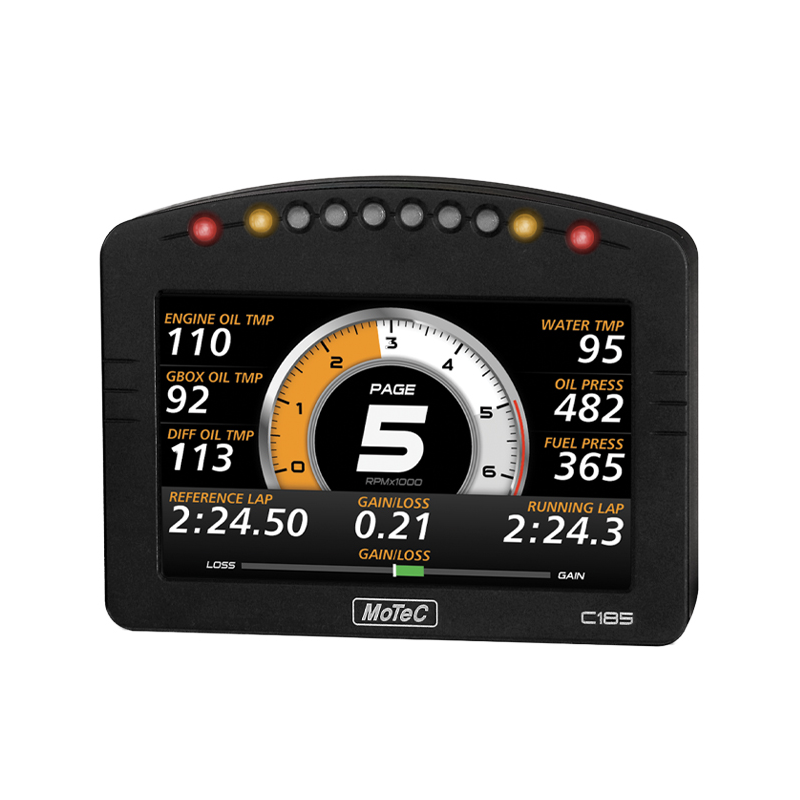

C185 5" Color Display Logger W/USB
The C185 is MoTeC's professional-level 5 inch Display Logger featuring a high-resolution full colour screen. Comes standard with 250 MB internal logging memory and MoTeC's i2 data analysis software. A Pro option is available for expert analysis.
$5,490
Overview
The C185 is MoTeC's professional-level 5 inch Display Logger featuring a high-resolution full colour screen. Comes standard with 250 MB internal logging memory and MoTeC's i2 data analysis software. A Pro option is available for expert analysis.
Pin-for-pin compatible with C187 and C1812 displays. Uses Autosport connectors for harsh motorsport environments.
FEATURES 5 inch (125 mm) ultra-bright anti-reflective colour display. 250 MB internal logging standard (upgradeable to 500 MB with USB Logging upgrade). Autosport connectors. USB Logging optional upgrade. Display Creator optional upgrade. Pro Analysis optional upgrade. T2 Telemetry optional upgrade.
DISPLAY Colour TFT LCD, anti-reflective. Selectable fixed layouts (user-programmable via optional Display Creator).
LOGGING 250 MB internal logging included standard. i2 Standard analysis software included. USB Logging upgrade increases memory to 500 MB.
INPUTS Standard: analogue, digital, speed inputs. Optional 44 I/O upgrade adds 10 extra analogue voltage inputs (AV11-AV20) and 4 extra analogue temperature inputs (AT5-AT8).
COMMUNICATIONS 2 configurable CAN buses. RS232 ports.
POWER SUPPLY 6 to 32V DC.
PHYSICAL Deutsch Autosport connector (not included).
